6BQ5 Generic

Bottom view. NJ7P Database

Push-pull (cathode bias)

Push Pull Class AB1 Amplifier
Plate Voltage ................................. 300 Volts
Grid No. 2 Voltage ............................ 300 Volts
Grid No. 1 Voltage Derived From
  Cathode Bias Resistor ....................... 130 Ohms
Peak Grid No. 1 Voltage ....................... 28.3 Volts
Plate Current (Zero Signal) ................... 72 Ma.
Plate Current (Maximum Signal) ................ 92 Ma.
Grid No. 2 Current (Zero Signal) .............. 8 Ma.
Grid No. 2 Current (Maximum Signal) ........... 22 Ma.
Load Resistance ............................... 8K Ohms
Power Output (approx) ......................... 17 Watts

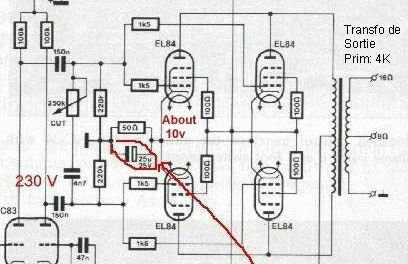

See: Vox

Push-pull (fixed bias)
