This is the original Challenge, c1950.
Mielnik also produced an unrelated amp under the Challenge marque some time later.

New: 8/11/10

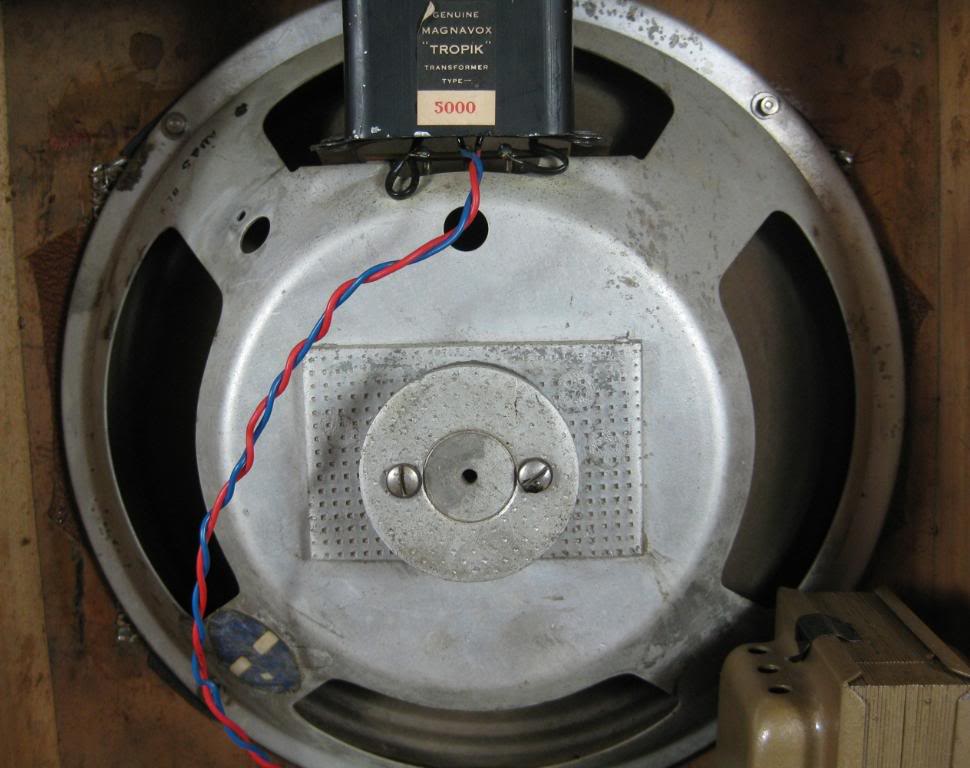

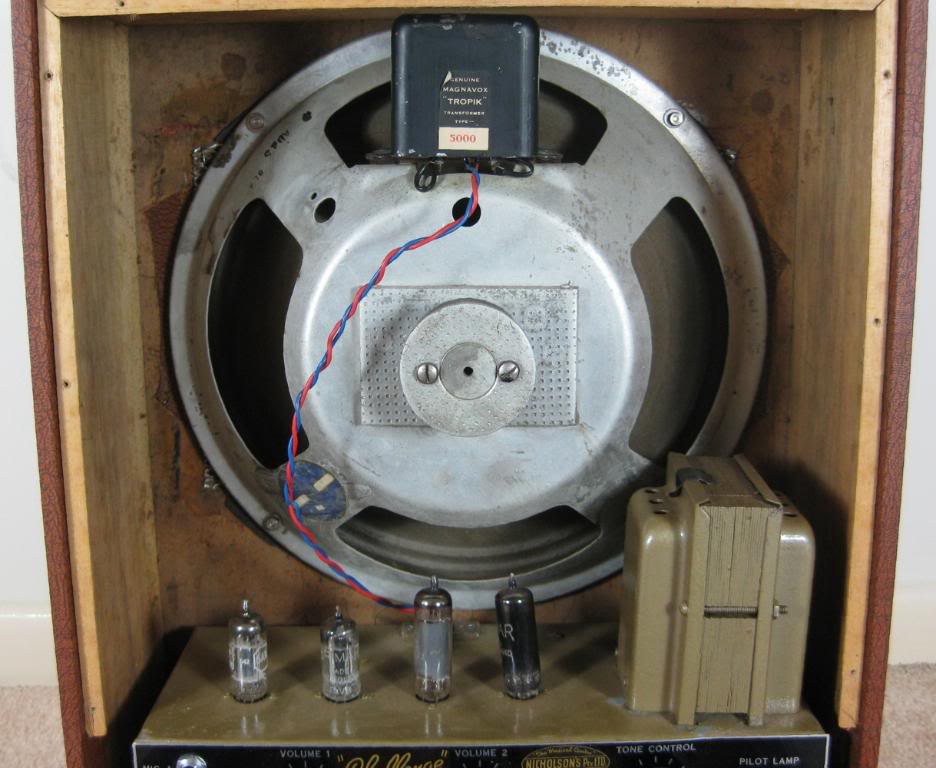

Single-ended (Class-A) output stage with the output transformer mounted on the speaker. This encapsulated style and mounting of output transformers are a good indication of early amplifiers as it went out of fashion around the early 1950's.

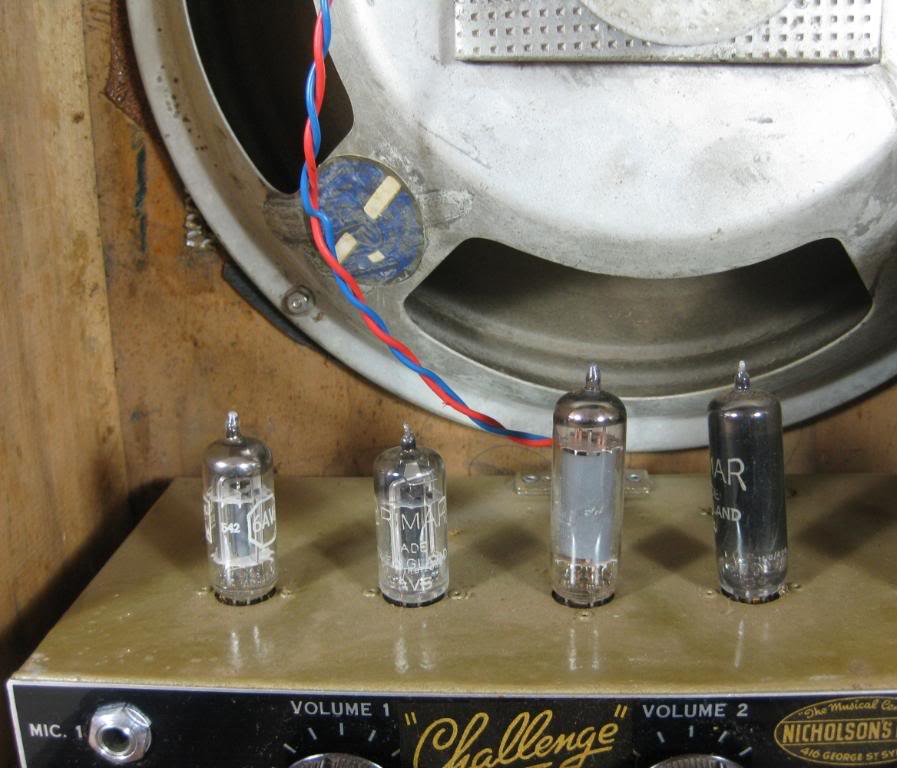

The preamps (left) are 6AV6's which are a single triode-double diode popular in early domestic radio receivers. In this application they are each equal to half a 12AX7 section, and the diodes are unused.

The next valve is the output, normally a pentode, possibly a 6BM8.

The rectifier (nearest the power transformer) is seriously blackened internally by electrons striking the glass and shows it has been in service a long time, however it does not mean it is faulty, just old.

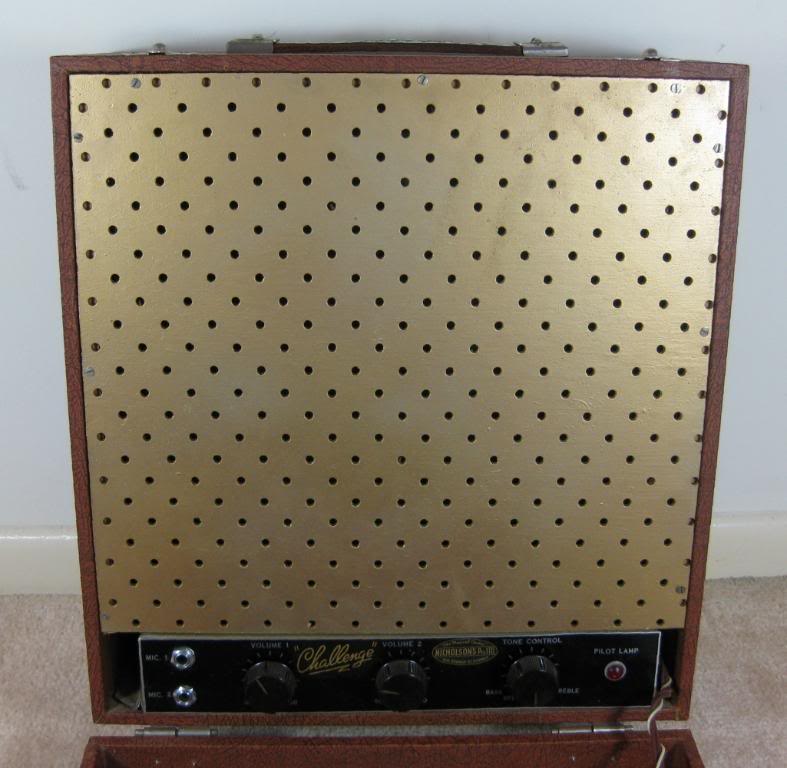

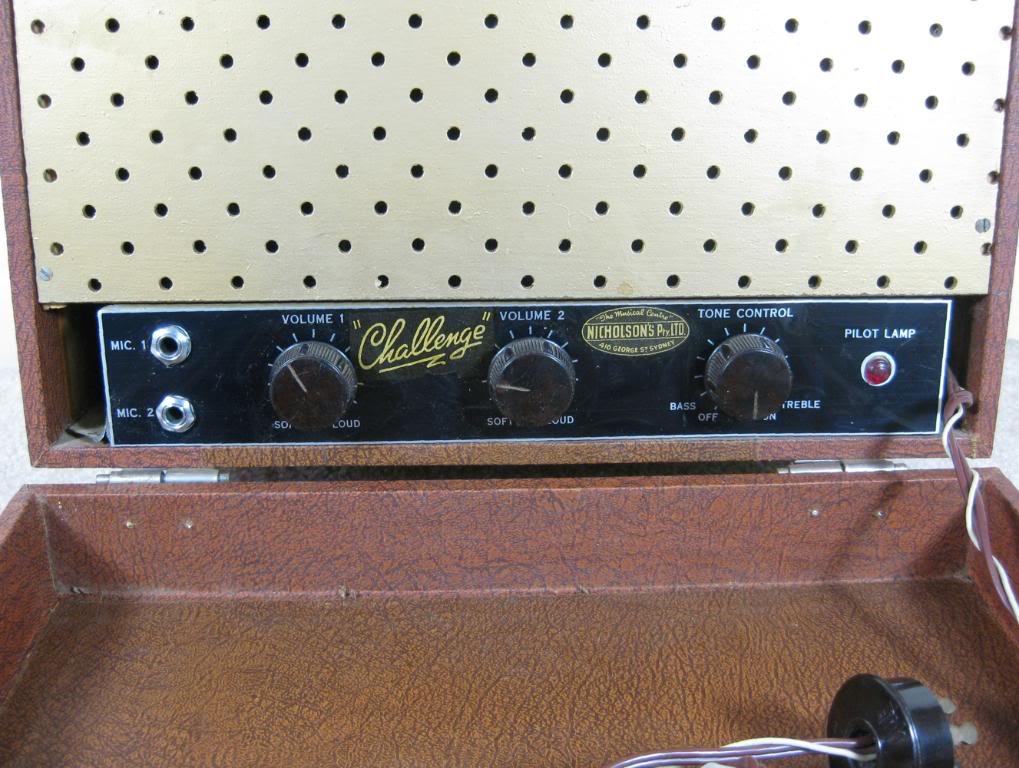

The single top-cut tone control, common to both channels, doubled as the mains power switch.

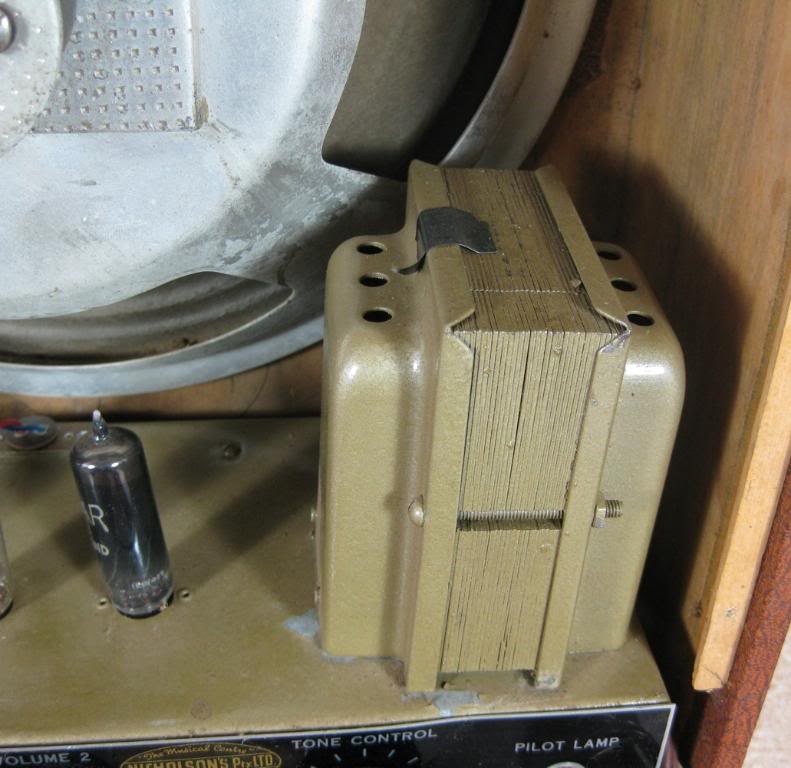

Apart from the “Nicholson's” label on the front, the power transformer gives it away as a Sydney build.

challenge/th_img_0621.jpg challenge/th_img_0623.jpg challenge/th_img_0624.jpg challenge/th_img_0625.jpg

challenge/th_img_0628.jpg challenge/th_img_0629.jpg challenge/th_img_0631.jpg challenge/th_img_0633.jpg

Click on key images to see full sized image.

Source: Peter G Field
