Maton - 04


New: 8/4/07

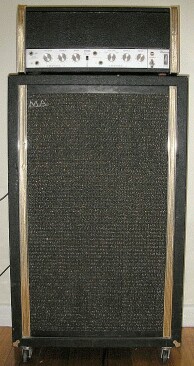

maton/mastersoundebay483c_3.jpg     maton/mastersoundebay4d01_12.jpg

Seller's blurb:

A beautiful sounding all-Australian Maton amplifyer. Maton no longer make amplifyers, so they are all highly sought after by collectors all over the world. Maton are known for their world-class Acoustic guitars.

The amp head:

It's got 2 large and two small valves/ tubes. The large valves are 6DQ5As or 6DQ5Bs [*] which would put it at about 40-50 watts. The small ones are 12AX7's, and one is for the preamp. I'm told by an experienced ebayer that the valves are the type used in Moodys, Goldentones, Rose Morris amps and several other Australian types like kit-built playmasters. They are very rugged sweep tubes used to dive TV sets.

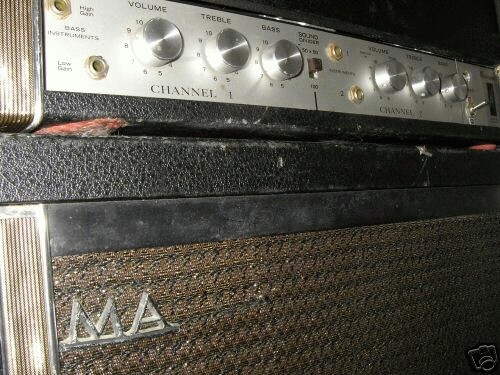

It has two channels, and the head sits on top of the cabinet. There's a switch on the head that says “Sound Divider” 50 x 50, or, if switched down, it says 100.

There's an on/off switch, with a broken glass cover over the “on” led light. There's a high gain and a low gain input titled “Bass instruments”. There's two other inputs for normal instruments, I assume, titled “Instruments”. There are 2 channels, both with volume, treble, base. They are all original knobs.

On the back is two speaker jacks. One is untitled, and I don't know what it does, and the other is titled “Ex. Speaker” There is a fuse knob, and a stand-by switch for the valves. 1G1 is etched into the back of the amp.

The cabinet:

The cabinet has three 12 inch speakers that say Plessey C12P. The three speakers (around 20 watts each) make the cabinet a 40-50 watt cabinet.

The condition:

The amp is not in fantastic condition. It works fine, but it needs to be restored by a professional.

The sound:

Although it's not in pristine condition, the amp sounds absolutely incredible. Like with all old-school valve amps, when you turn it up, it sounds warm and crunchy. When I play my FX pedal through it, the searing leads are just incredible. Similarly, if you plug a nice acoustic into it, it sounds priceless.

[* given what we know about Maton's, and his remarks, it is more likely that these are actually 6DQ6A or B's. -rr]

Source: e-bay

Mastersound Series 10

New: 24/9/06, revised: “31 Oct 2006” posted 3/1/07

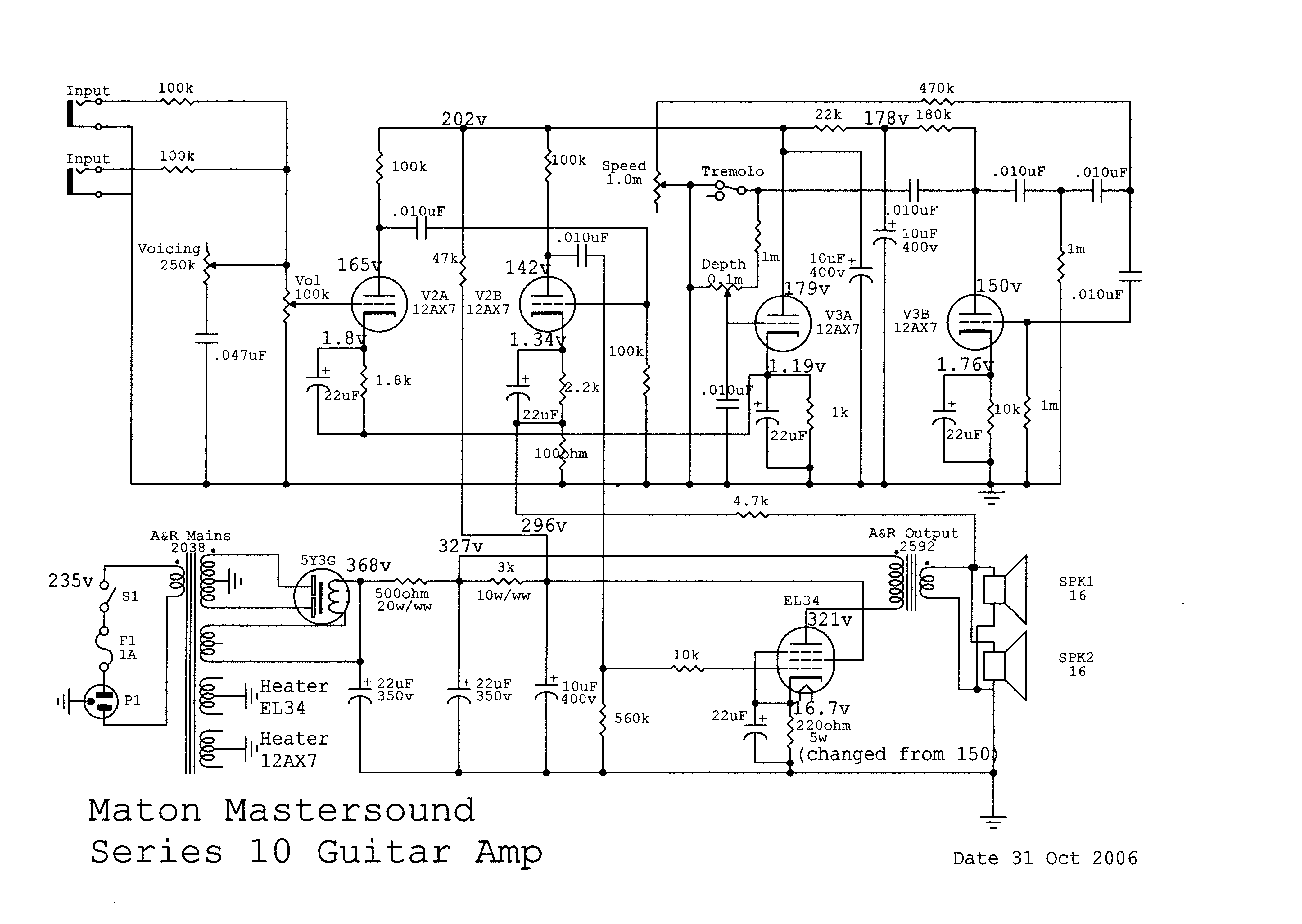

Circuit for Mastersound Series 10
Note: thanks to Ric's considerable efforts this drawing corrects a number of details on the original (undated). If you have the previous undated version please download this corrected version and delete the old one.

In Ric's amp the cathode resistor for V3A (tremolo injection) was 8k2. This was clearly wrong, biassing the preamp section V2A off. Reducing this to 1k has restored proper operation, but until someone else has a look under their Mastersound-10 and tells us what the correct value is, it remains a mystery.

New: 2/7/06
Serial: B 5281

Source: Ric's Vintage Guitars, Perth
I just love the look of this amp.

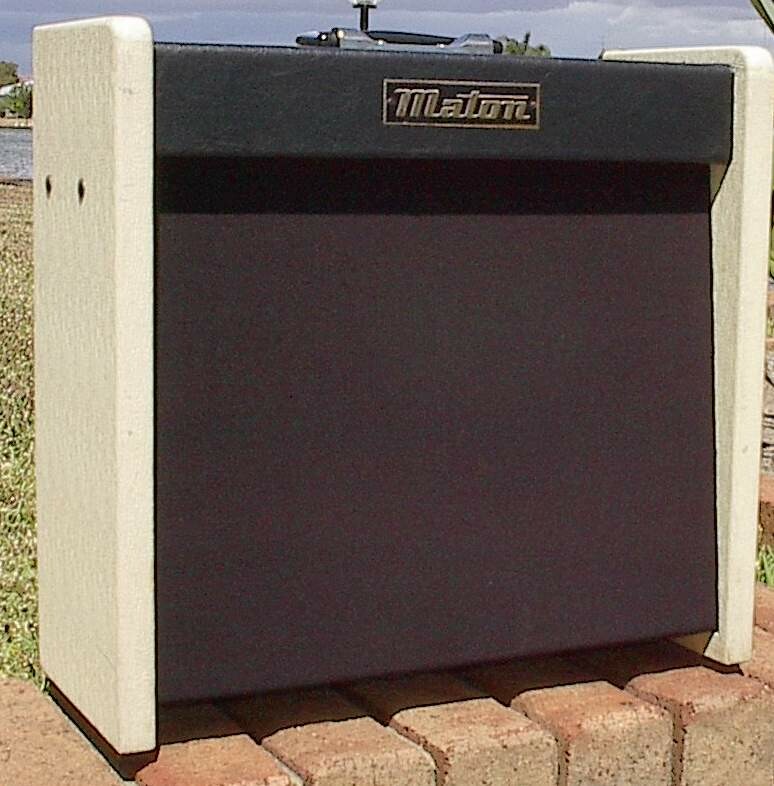

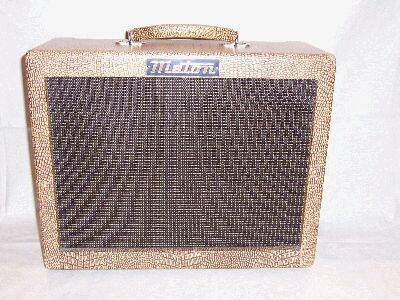

Front view

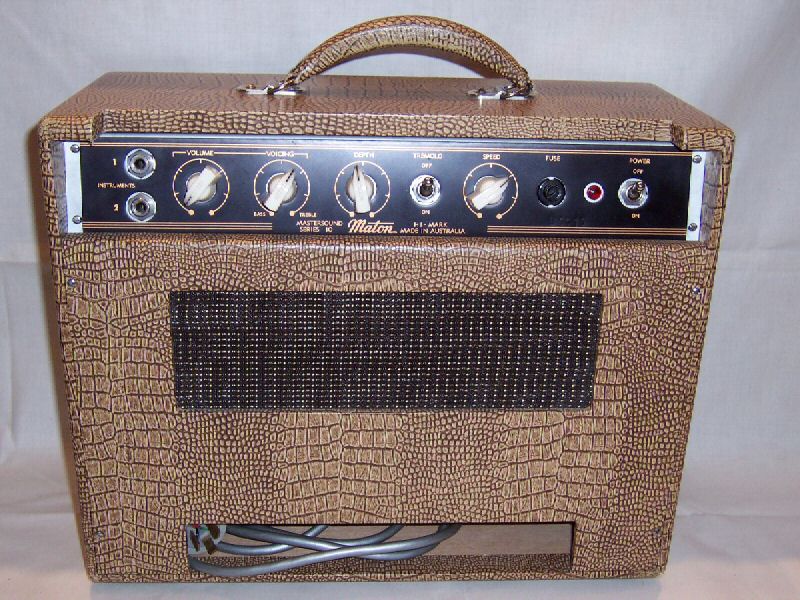

Rear view
Click for fill size 140k jpg

Source: Ian Rumbold

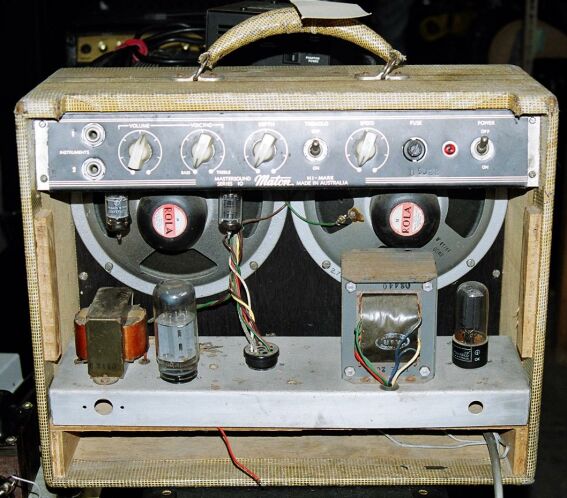

Inside view
Class-A with a single 5881
Source: Ian Rumbold

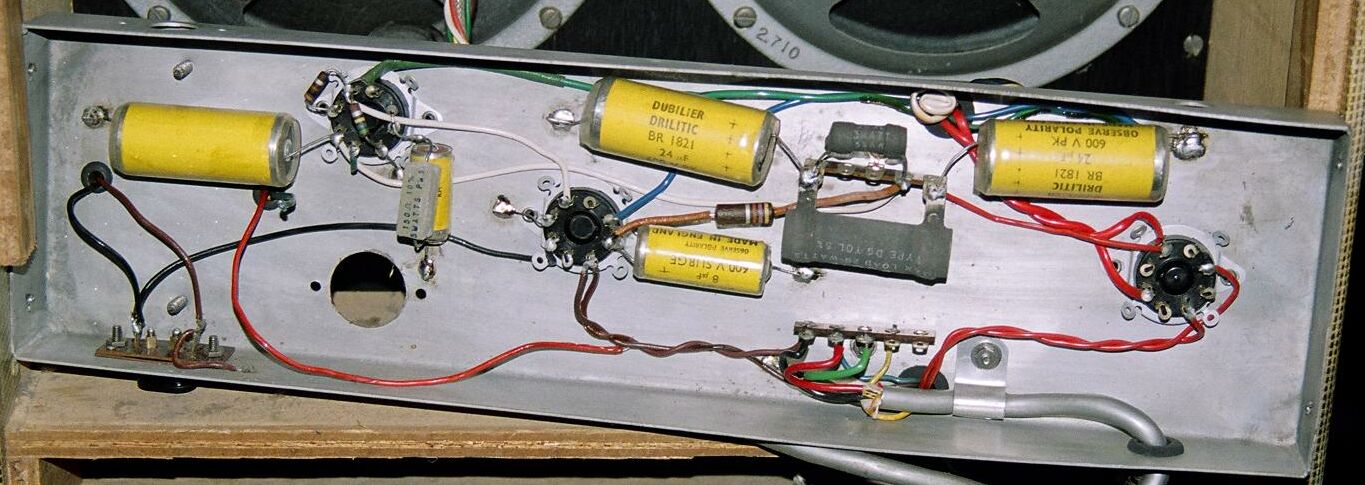

Power chassis underside (141kb jpg) is quite spare as most of the circuitry is in the preamps chassis.

Mastersound Super-6

New: 24/9/06
Serial: B 5050 (embossed on front panel under pilot light)

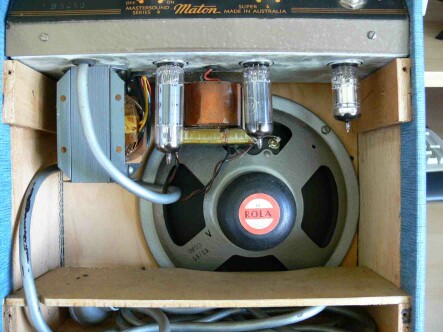

Super 6 inside
Caution: the 6V4 rectifier and 6GW8 output valves appear to be transposed in this shot.

Source: Tim Griffiths

CPA80 - “Compact Professional Amplifier”

New: 24/9/06



Channel 1

Channel 2

Rear panel compression control
5x 12AX7's, 1x 12AT7, 2x 6DQ6B's
Two Plessy speakers
Spring-loaded lay-back legs

Castors and imported speakers optional.
H 515mm, W 670mm, D 235mm, 25.8kg

Source: Richard de Winter

Maton were, and still are, mainly guitar builders.

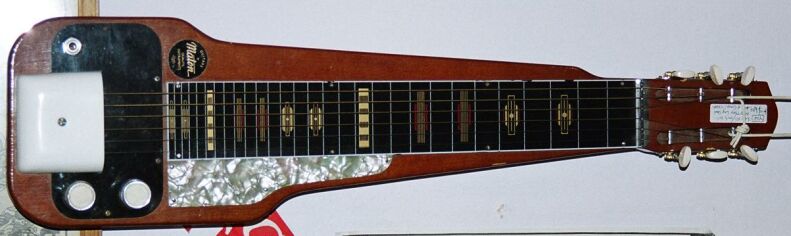

Steel guitar

Out of the ordinary, this fretless lap steel has three fittings for screw-on legs, under. Asking AU$699 Sept '05.
Source: Music Swop Shop
